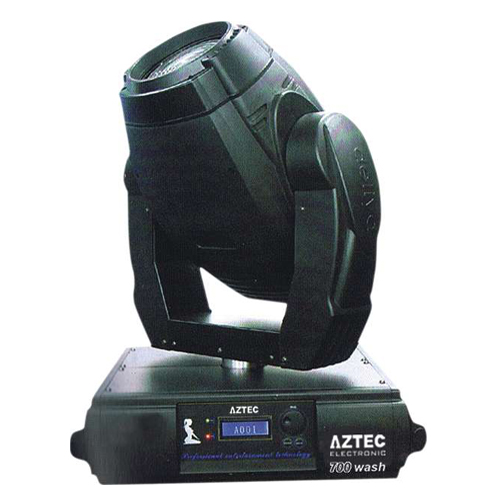

AZTEC 700 WASH

Aztec 700 Wash is a Moving Head with Lamp Philips MSR700/SA discharge lamp, and control automatic and DMX Remote control On/Off.



Source is Ballast : Electronic and magnetic ballast available for choice. and transformer  : Traditional transformer or switch mode power supply available for choice. Cmy color mixing systems. color wheel 4 dichroic filters + open, 5600k and 3200k CTO UV Filter (black light) color wheel continous rotation, with rainbow effect. Effect wheel is Beam shape adjustment 0o - 180o, frost filter.



Strobe is separating shutter for black out and variable strobing 1 - 10 fls per sec. Preprogrammed Macro with pulse effect.



Expand/Collapse All

Feature

  • Lamp : Philips MSR700/SA discharge lamp
    - Control : Automatic and DMX remote control on/off
  • Source :
    - Ballast : Electronic & magnetic ballast available for choice
    - Tranformer : Traditional transformer or switc mode power supply
    available for choice.
  • CMY color mixing system :
    Cyan, Magenta, Yellow : 0-100% + offset adjustment
  • Color wheel : 4 dichroic filters + open. 5600k and
    3200k CTO UV filter (black light) color wheel continuous
    rotation, with rainbow effect
  • Effect wheel : Beam shape adjusment 00-1800, frost filter
  • Strobe : Separating shutter for black out and variable strobing
    1-10 fls per sec. Preprogrammed Macro with pulse effect
  • Dimmer : 0-100% linear dimmer
  • Zoom : 200mm fresnel lens with 110-190 zoom
  • X/Y movement range : Pan 5400 /TIlt 2800, automatic pan/tilt
    positioning correction. X/Y speed adjustment and Programmed Macro
    effect
  • X/Y resolution : 8/16 BIT
  • Reset : By console or panel
  • AC supply
    Voltage :
    Magnetic ballast : 210/230/245v/50hz 208/230v/60hz
    Electronic ballast : 100/120/210/230/250v 50/60hz
    Power Consumption : 1000w
  • Control and Programming
    Signal pinout : Pin1 GND, pin2(-),pin3(+). Protocol : USITT DMX-512.
    Display : LCD graphic with shuttle wheel. DMX cahnnel : 18/22CH.
    Signal input : 3-pin XLR male.
    Signal output : 3-pin XLR female

Spesification

  • Dimensions (mm) : L480 x W402 x H671
  • Weight : 42 kg
