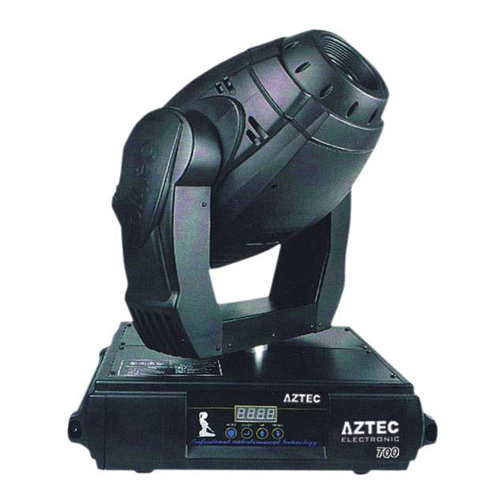

AZTEC 700 SPOT

Aztec 700 Spot is a Moving Head with Lamp Philips MSR700/SA discharge lamp. Control automatic and DMX control on/off. Color systems are two parts, Color Wheel 1:9 color + open, rainbow effect in both directions, and Color wheel 2:6 colors + open 5600 and 3200k ctf. uv filter for wood lifth, rainbow effect in both directions.



Power supply with magnetic ballast 210/230/245v/50Hz 208/230v/60Hz and electronic ballast 100/120/210/230/250v 50/60Hz, and power consumption 1000Watt. Protocol using USITT CMX-512, Display addressing, personality setting and effects calibration via LED Control panel. Operations modes is stand alone and master/slave operation on-board programming. control channel is 16 Channels, Data IN/OUT is Locking 3-Pin XLR.



Expand/Collapse All

Feature

  • Lamp : Philips MSR700/SA discharge lamp
  • Control : Automatic and DMX remote control on/off
  • Color system :
    - Color wheel 1 : 9 colors+open, rainbow effect in both directions
    - Color wheel 2 : 6 colors + open 5600 and 3200k ctf, uv filter for
    wood Lifht, rainbow effect in both directions
  • Zoom : Three different apertures 150, 180 and 220
  • Focus : Remotely controlable motorized focus
  • Gobo system :
    Gobo wheel 1 : 6 rotating interchangeable and indexible gobos+open position
    Gobo wheel 2 : 9 fixed gobo+open position with gobo shake function, roto-gobo
    effect
  • Prism : High-speed rotating 3 facet prism
  • Iris : 5-100% linear adjustment on beam of lighting
  • Dimmer : Full range dimming
  • Strobe : 1-10 fps, variable strobe effect
  • Reset : Reset by DMX or panel
  • Pan/Tilt movement range : Pan 5400 / tilt 2800 , automatic PAN/TILT positioning
    correction
  • Pan/Tilt movement resolution : 16 BIT
  • Ballast : Magnetic or electronic ballast available for choice
  • Power supply
    Magnetic ballast : 210/230/245v/50hz 208/230v/60hz
    Electronic ballast : 100/120/210/230/250v 50/60hz
    Power Consumption : 1000w
  • Control and Programming
    Protocol : USITT DMX-512. Display : Addressing, personality
    setting and effects calibration via LED control panel. Operations
    modes : Stand alone and master/slave operation on-board programming
    Control Channel : 16CH. Data IN/OUT : Locking 3-pin XLR

Spesification

  • Dimensions (mm) : L480 x W402 x H671
  • Weight : 42 kg
