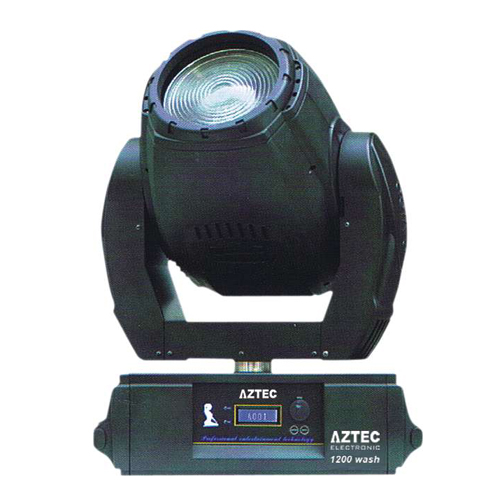

AZTEC 1200 WASH

Aztec 1200 Wash is a moving head with 1200 W discharge lamp (6500K, 750Hours life). Approved model GE CSR 1200S or Philips MSI1200S. Control automatic and DMX remote control on/off. Source from Ballast is electronic and magnetic ballast available for chioce, Transformer is Traditional transformer or switch mode power supply available for choice.



Aztec 1200 wash is CMY (Cyan, Magenta, Yellow) color mixing systems. Color wheel : 4 dichroic filters (black light) color wheel continous rotation, with rainbow effects. Effects wheel : beam shape adjustment 0o-180o. Frost filter. Strobe : separating shutter for black out and variable strobing 1 - 10 fls per sec.




Expand/Collapse All

Feature

  • Lamp : 1200w discharge lamp (6500K, 750hrs life)
  • Approved model : GE. CSR1200S OR PHILIPS MSI1200S
  • Control : Automatic and DMX remote control on/off
  • Source
    - Ballast : Electronic & Magnetic ballast available for choice
    - Transformer : Traditional transformer or switch mode
    power supply available for choice
  • CMY color mixing system
    - Cyan, Magenta, Yellow : 0-100% + offset adjustment
  • Color wheel : 4 dichroic filters + open. 5600k and
    3200k CTO UV filter (black light) color wheel continuous
    rotation, with rainbow effect
  • Effect wheel : Beam shape adjustment 00-1800, frost filter
  • Strobe : Separating shutter for black out and variable strobing
    1-10 fls per sec. Preprogrammed Macro with pulse effect
  • Dimmer : 0-100% linear dimmer
  • Zoom : 200mm fresnel lens with 160 - 280 zoom
  • X/Y movement range : Pan 540 / tilt 280 , automatic pan/
    tilt positioning correction. X/Y speed adjustment and Preprogrammed
    Macro effect
  • X/Y resolution : 8/16 bit
  • Reset : By console or panel
  • AC supply
    Magnetic ballast : 210/230/245v/50hz 208/230v/60hz
    Electronic ballast : 100/120/210/230/250v 50/60hz
    Power Consumption : 1700w
  • Control and Programming
    signal output : Pin1 GND, pin2(-),pin(+). Display : LCD graphic
    with shuttle wheel. Protocol : USITT DMX-512. DMX Channel :
    18/22CH. Signal input : 3-pin&5-pin XLR male.
    Signal output : 3-pin&5-pin XLR female

Spesification

  • Dimensions (mm) : L498 x W435 x H713
  • Weight : 38.3 kg
